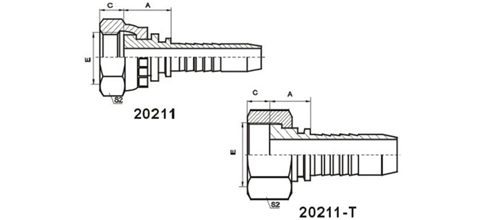

20211/20212
20211T/20212T
Metric Female Flat Seal
| 代号 | 螺纹 E | 软管 HOSE BORE | 尺寸 DIMENSIONS | |||
| PART NO. | THREAD E | 公称内径 DN | 标号 DASH | A | C | S1 |
| 20211-10-02 | M10X1 | 4 | 2 | 14 | 6 | 14 |
| 20211-12-03 | M12X1.25 | 5 | 3 | 14 | 8 | 17 |
| 20211-14-04 | M14X1.5 | 6 | 4 | 15.5 | 8.5 | 19 |
| 20211-14-05 | M14X1.5 | 8 | 5 | 15.5 | 8.5 | 19 |
| 20211-16-04 | M16X1.5 | 6 | 4 | 16.5 | 8 | 22 |
| 20211-16-05 | M16X1.5 | 8 | 5 | 16.5 | 8 | 22 |
| 20211-16-06 | M16X1.5 | 10 | 6 | 16.5 | 8 | 22 |
| 20211-18-06 | M18X1.5 | 10 | 6 | 17.5 | 8 | 24 |
| 20211-20-08 | M20X1.5 | 12 | 8 | 18.5 | 10 | 27 |
| 20211-22-08 | M22X1.5 | 12 | 8 | 18.5 | 10 | 27 |
| 20211-22-10 | M22X1.5 | 16 | 10 | 19.5 | 10 | 27 |
| 20211-24-10 | M24X1.5 | 16 | 10 | 20.5 | 10.5 | 30 |
| 20211-30-12 | M30X1.5 | 20 | 12 | 21.5 | 11 | 36 |
| 20211-33-14 | M33X2 | 22 | 14 | 21.5 | 13 | 41 |
| 20211-42-20 | M42X2 | 32 | 20 | 26 | 15 | 50 |
| 20211-18-05T | M18X1.5 | 8 | 5 | 17.5 | 8 | 24 |
| 20211-20-06T | M20X1.5 | 10 | 6 | 16 | 10 | 24 |
| 20211-22-06T | M22X1.5 | 10 | 6 | 16 | 10 | 27 |
| 20211-24-08T | M24X1.5 | 12 | 8 | 16.5 | 11 | 30 |
| 20211-27-08T | M27X1.5 | 12 | 8 | 18.5 | 10 | 32 |
| 20211-27-10T | M27X1.5 | 16 | 10 | 19.5 | 10 | 32 |
| 20211-36-12T | M36X2 | 20 | 12 | 20 | 13 | 41 |
| 20211-36-14T | M36X2 | 22 | 14 | 20 | 13 | 41 |
| 注： 1. 表中代号用于编织软管； 2. 如需用于缠绕软管代号改为20212-xx-xx | ||||||
| Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20212-xx-xx； | ||||||
