| 代号 | 螺纹 E | 软管 HOSE BORE | O形圈 | 尺寸 DIMENSIONS | |||

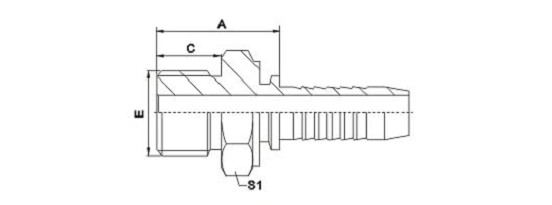

| PART NO. | THREAD E | 公称内径 DN | 标号 DASH | O RING | A | C | S1 |
| 12211-04-04 | G1/4″X19 | 6 | 4 | O111 | 23.5 | 11 | 19 |
| 12211-04-06 | G1/4″X19 | 10 | 6 | O111 | 23.5 | 11 | 19 |
| 12211-06-06 | G3/8″X19 | 10 | 6 | O113 | 26.5 | 12 | 22 |
| 12211-08-04 | G1/2″X14 | 6 | 4 | O115 | 33.5 | 14 | 27 |
| 12211-08-06 | G1/2″X14 | 10 | 6 | O115 | 33.5 | 14 | 27 |
| 12211-08-08 | G1/2″X14 | 12 | 8 | O115 | 34 | 14 | 27 |
| 12211-10-10 | G5/8″X14 | 16 | 10 | O910 | 36 | 15.5 | 30 |
| 12211-12-10 | G3/4″X14 | 16 | 10 | O119 | 33.5 | 15.5 | 32 |
| 12211-12-12 | G3/4″X14 | 20 | 12 | O119 | 38 | 15.5 | 32 |
| 12211-12-16 | G3/4″X14 | 25 | 16 | O119 | 36 | 15.5 | 32 |
| 12211-16-16 | G1″X11 | 25 | 16 | O217 | 44.5 | 18.5 | 41 |
| 12211-20-20 | G1.1/4″X11 | 32 | 20 | O222 | 46 | 20 | 50 |
| 注： 1. 表中代号用于编织软管； 2. 如需用于缠绕软管代号改为12212-xx-xx | |||||||
| Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 12212-xx-xx； | |||||||
